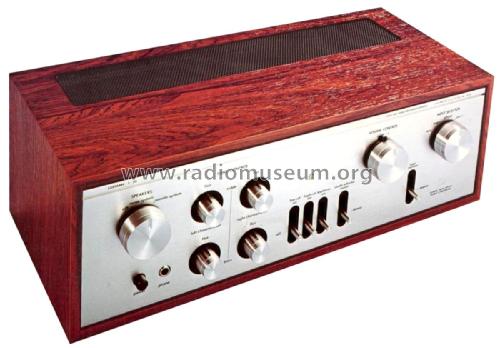

Solid State Stereo Integrated Amplifier L-30

Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233857) Ampl/Mixer Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 1871561) Ampl/Mixer
Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233856) Ampl/Mixer Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233858) Ampl/Mixer
Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233859) Ampl/Mixer Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233863) Ampl/Mixer
Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233865) Ampl/Mixer Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2396935) Ampl/Mixer
Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2396936) Ampl/Mixer
Use red slider bar for more.
Solid State Stereo Integrated Amplifier L-30; Luxman, Lux Corp.; (ID = 2233857) Ampl/Mixer
Luxman, Lux Corp.;: Solid State Stereo Integrated Amplifier L-30 [Ampl/Mixer] ID = 2233857 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State Stereo Integrated Amplifier L-30, Luxman, Lux Corp.; Kinsuido of Osaka

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1977 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 27:
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 58 W (unknown quality)
from Radiomuseum.org Model: Solid State Stereo Integrated Amplifier L-30 - Luxman, Lux Corp.; Kinsuido of
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 160 x 225 mm / 17.3 x 6.3 x 8.9 inch
Notes

Stereo Integrated Amplifier with 29 watts RMS per channel into 8 ohms.

Music power: 32 + 32 watt into 8 Ω (stereo) - 37 + 37 watt into 4 Ω (stereo) - Frequency response: 15 Hz to 50 kHz - total harmonic distortion: 0.05% - damping factor: 90 - input sensitivity: 2.5 mV (MM), 150 mV (line) - signal to noise ratio: 64 dB (MM), 83 dB (line) - separate volume controls L/R - separate tone controls L/R for bass and treble - switches for speakers: main/remote - low cut/high cut/ loudness/ mono/stereo - tape monitor/source - input: phono/aux1/aux2/tuner - jack for headphones at the front - power consumption: max. 140 watt.

Made in Japan.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
