LV-100

LV-100; Luxman, Lux Corp.; (ID = 1021401) Ampl/Mixer LV-100; Luxman, Lux Corp.; (ID = 1021402) Ampl/Mixer
LV-100; Luxman, Lux Corp.; (ID = 1021403) Ampl/Mixer LV-100; Luxman, Lux Corp.; (ID = 1021404) Ampl/Mixer
LV-100; Luxman, Lux Corp.; (ID = 1021405) Ampl/Mixer LV-100; Luxman, Lux Corp.; (ID = 1021406) Ampl/Mixer
Use red slider bar for more.
LV-100; Luxman, Lux Corp.; (ID = 1021401) Ampl/Mixer
Luxman, Lux Corp.;: LV-100 [Ampl/Mixer] ID = 1021401 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model LV-100, Luxman, Lux Corp.; Kinsuido of Osaka

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1987 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: LV-100 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 438 x 110 x 278 mm / 17.2 x 4.3 x 10.9 inch
Notes Stereo amplifier. 2x 40W, T.H.D.:0.008% (1kHz, 40W, 8Ohms), Frequency response: Phono 20Hz-20kHz(+/-5dB), CD, Tuner, Tape AV/AUX 10Hz-80kHz(+1, -3dB), S/N ratio 88dB(Phono), CD, Tuner, Tape, AV/AUX 96dB.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data -- Original prospect or advert

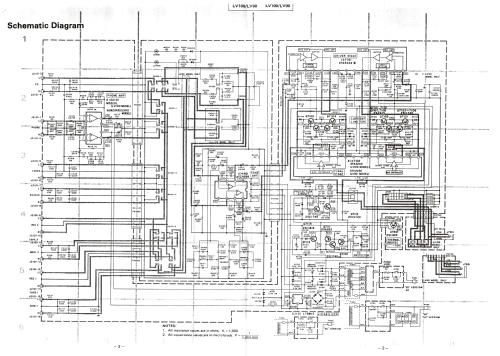

Literature/Schematics (1) -- Original prospect or advert

Model page created by Panagiotis Makridis. See "Data change" for further contributors.



All listed radios etc. from Luxman, Lux Corp.; Kinsuido of Osaka
Here you find 192 models, 168 with images and 27 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
