• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1986

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 110095

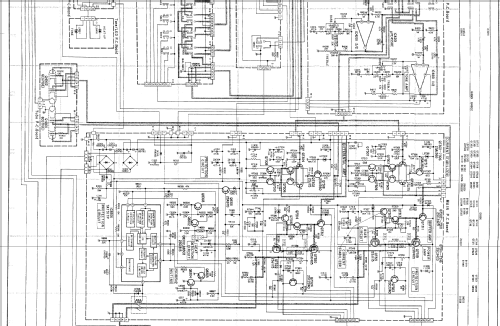

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6FQ7 6FQ7

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: LV-103 - Luxman, Lux Corp.; Kinsuido of

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 438 x 148 x 346 mm / 17.2 x 5.8 x 13.6 inch

• Notes
• HiFi-Verstärker in Hybridtechnik; die 2 Doppeltrioden dienen als Vorstufen; 2× 60 Watt Sinus-Ausgangsleistung bei 20 Hz bis 20 kHz an 8 Ohm.

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)
