LV-105

LV-105; Luxman, Lux Corp.; (ID = 450627) Ampl/Mixer LV-105; Luxman, Lux Corp.; (ID = 450630) Ampl/Mixer
LV-105; Luxman, Lux Corp.; (ID = 1582663) Ampl/Mixer LV-105; Luxman, Lux Corp.; (ID = 1582664) Ampl/Mixer
Use red slider bar for more.

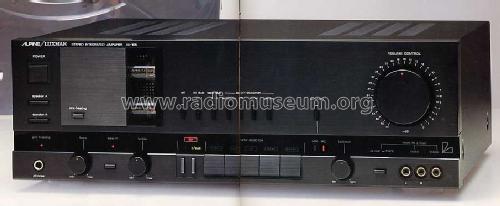

LV-105; Luxman, Lux Corp.; (ID = 450627) Ampl/Mixer
Luxman, Lux Corp.;: LV-105 [Ampl/Mixer] ID = 450627 905x373
Select picture or schematic to display from thumbnails on the right and click for download.
For model LV-105, Luxman, Lux Corp.; Kinsuido of Osaka

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1986 Category: Audio Amplifier or -mixer
Valves / Tubes 2: 6FQ7 6FQ7
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: LV-105 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 438 x 148 x 346 mm / 17.2 x 5.8 x 13.6 inch
Notes HiFi-Verstärker in Hybridtechnik; die 2 Doppeltrioden dienen als Vorstufen; 2× 80 Watt Sinus-Ausgangsleistung bei 20 Hz bis 20 kHz an 8 Ohm.
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
Price in first year of sale 2'250.00 DM
Source of data - - Data from my own collection

Model page created by H. P.. See "Data change" for further contributors.
