LX77

LX77; Luxman, Lux Corp.; (ID = 676135) Speaker-P LX77; Luxman, Lux Corp.; (ID = 676136) Speaker-P
Use red slider bar for more.

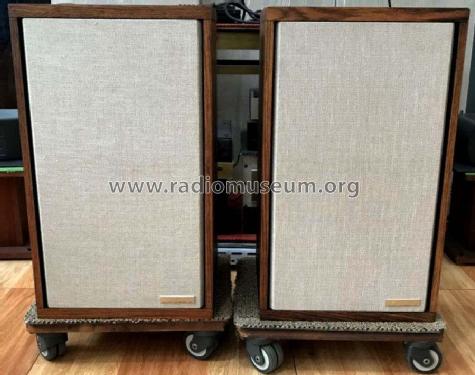

LX77; Luxman, Lux Corp.; (ID = 676135) Speaker-P
Luxman, Lux Corp.;: LX77 [Speaker-P] ID = 676135 754x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model LX77, Luxman, Lux Corp.; Kinsuido of Osaka:
Prospekt

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1971 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: LX77 - Luxman, Lux Corp.; Kinsuido of
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 388 x 666 x 310 mm / 15.3 x 26.2 x 12.2 inch
Notes 3-Weg Stand-Box, 60 Watt Musik, 8 Ohm, 30 - 22.000Hz.
Trennfrequenzen 700Hz, 8.000Hz.
300mm TT, 40mm MT, 33mm HT.
Net weight (2.2 lb = 1 kg) 22.5 kg / 49 lb 9 oz (49.559 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
