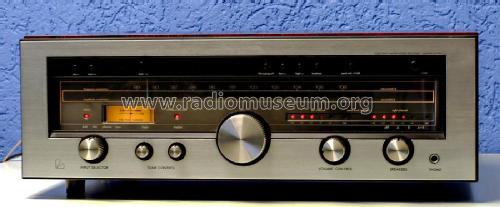

Stereo Receiver R-1040

Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 392578) Radio Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 392580) Radio
Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 392579) Radio Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 392581) Radio
Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 495094) Radio Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 579943) Radio
Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 687330) Radio Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 687331) Radio
Use red slider bar for more.
Stereo Receiver R-1040; Luxman, Lux Corp.; (ID = 392578) Radio
Luxman, Lux Corp.;: Stereo Receiver R-1040 [Radio] ID = 392578 892x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver R-1040, Luxman, Lux Corp.; Kinsuido of Osaka:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1977/1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver R-1040 - Luxman, Lux Corp.; Kinsuido of
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 485 x 155 x 371 mm / 19.1 x 6.1 x 14.6 inch
Notes LED-Aussteueranzeige, Eingänge: Phono, 2× Tape, Aux, 4 LS-Anschlüsse.
AM/FM Stereo Receiver mit 2 x 60 Watt Sinus an 4 Ohm, Frequenzgang 10-50.000 Hz (-1dB), Klirrfaktor 0,05% (40Watt, 8 Ohm).
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 500.00 $
Source of data - - Data from my own collection
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
