Solid State Stereo Receiver R-1050

Luxman, Lux Corp.; Kinsuido of Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Luxman, Lux Corp.; Kinsuido of Osaka

Year
1978 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
89918

Schematics

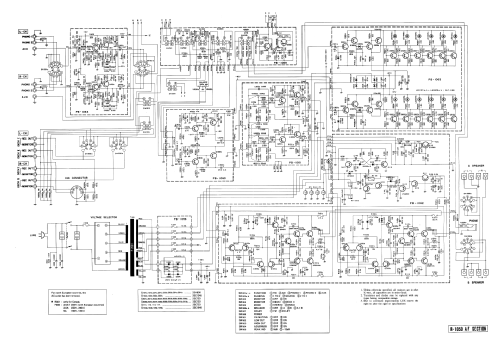

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2140662) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (3)

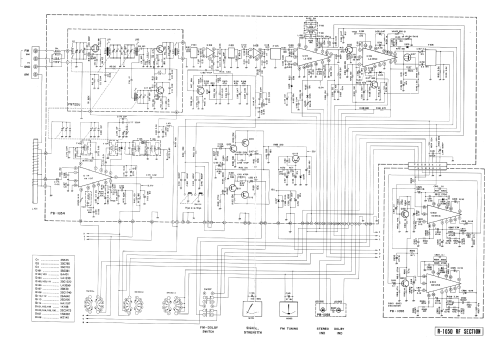

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2140663) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (3)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2043738) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2043739) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2043740) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2043742) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 173243) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 173244) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 173245) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 495095) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (2)
Original prospekt, in cca.1977 , Germany.

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 495096) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (2)
Original prospekt, in cca.1977 , Germany.

Solid State Stereo Receiver R-1050; Luxman, Lux Corp.; (ID = 2043743) Radio — Luxman, Lux Corp.; Solid State Stereo Receiver R-1050 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110; 220 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
180 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Solid State Stereo Receiver R-1050 - Luxman, Lux Corp.; Kinsuido of

Shape
Book-shelf unit.

Dimensions (WHD)
490 x 180 x 360 mm / 19.3 x 7.1 x 14.2 inch

Notes
AM/FM-Reciever mit 2 x 90 Watt Sinus an 4 Ohm, Frequenzgang 10-50.000 Hz (-1dB), Klirrfaktor <0,05% bei 55 Watt, 8 Ohm.
Dolbysiertes FM kann mit optionalem Dolby-Modul empfangen werden.
LED-Aussteueranzeige, Eingänge: 2× Phono, 2× Tape, Aux, 4 LS-Anschlüsse.

Net weight (2.2 lb = 1 kg)
15 kg / 33 lb 0.6 oz (33.04 lb)

Source of data
- - Data from my own collection

Mentioned in
-- Original prospect or advert

Author
Model page created by Peter Böhm. See "Data change" for further contributors.
