- Country
- Japan
- Manufacturer / Brand
- Luxman, Lux Corp.; Kinsuido of Osaka
- Year
- 1975 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148289
Luxman R1500E of Zsolt Andrásy Hungary
Q: Luxman, Katalog 1975
Original prospekt in 1975.
All Akustik Brochure - 1975 - Seite 05
From 1978 catalogue

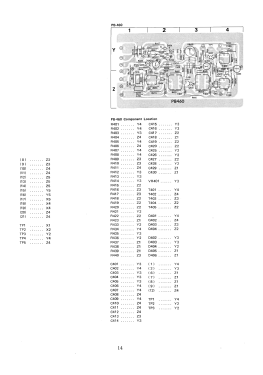

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 200 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R1500 - Luxman, Lux Corp.; Kinsuido of
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 520 x 160 x 350 mm / 20.5 x 6.3 x 13.8 inch
- Notes
- AM/FM Receiver mit 2 x 100 Watt Sinus an 4 Ohm. Frequenzgang 15 - 35.000 Hz (-1dB).
Mikrofonmischung (regelbar) mit 2 Phono-Eingängen oder 2 AUX-Eingängen.
Direkte Bandüberspielung durch 2 TB-Eingänge.
Rastbarer Equalizer.
Anschluss von 3 LS-Paaren.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
