- Country
- Japan
- Manufacturer / Brand
- Luxman, Lux Corp.; Kinsuido of Osaka
- Year
- 1978 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153502
Q: Luxman, Katalog 1978
Q: Luxman, Werbung 1978
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 350 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

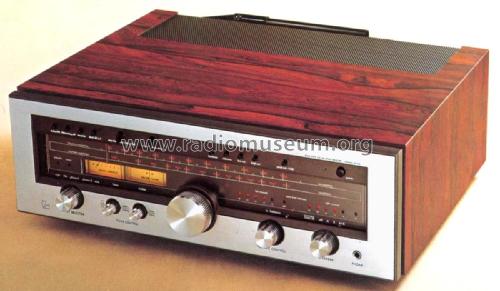

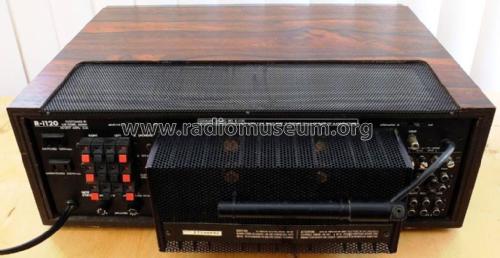

- Model: R-1120 - Luxman, Lux Corp.; Kinsuido of
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 490 x 180 x 415 mm / 19.3 x 7.1 x 16.3 inch
- Notes
- AM/FM-Receiver mit 2 x 175 Watt Sinus an 4 Ohm. Frequenzgang 15-70.000 Hz (-1dB), Klirrfaktor <0,03%.
Peak-Level-LED-Anzeige, FM-Dolby nachrüstbar, Tape to Tape, Subsonic Filter, Klangeinsteller über je zwei Eckfrequenzen. Spezieller Ausgang für Elektrostaten.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
