Realtime Processed DC Power Amplifier 5M21

Realtime Processed DC Power Amplifier 5M21; Luxman, Lux Corp.; (ID = 1882043) Ampl/Mixer

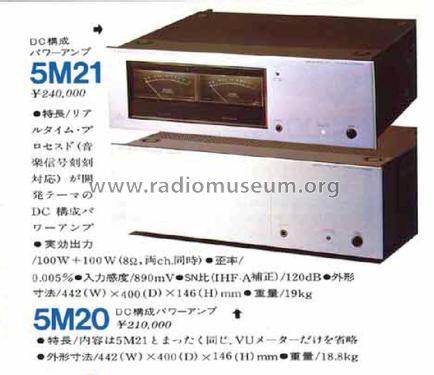

Realtime Processed DC Power Amplifier 5M21; Luxman, Lux Corp.; (ID = 1882040) Ampl/Mixer Realtime Processed DC Power Amplifier 5M21; Luxman, Lux Corp.; (ID = 1882041) Ampl/Mixer
Realtime Processed DC Power Amplifier 5M21; Luxman, Lux Corp.; (ID = 1882042) Ampl/Mixer
Use red slider bar for more.
Realtime Processed DC Power Amplifier 5M21; Luxman, Lux Corp.; (ID = 1882040) Ampl/Mixer
Luxman, Lux Corp.;: Realtime Processed DC Power Amplifier 5M21 [Ampl/Mixer] ID = 1882040 1400x1887
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realtime Processed DC Power Amplifier 5M21, Luxman, Lux Corp.; Kinsuido of Osaka:
Luxman Manual

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 49:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 200 W (undistorted)
from Radiomuseum.org Model: Realtime Processed DC Power Amplifier 5M21 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 442 x 146 x 400 mm / 17.4 x 5.7 x 15.7 inch
Notes

Luxman Realtime Processed DC Power Amplifier Model 5M21.

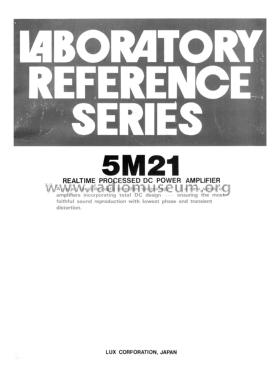

"Laboratory Reference Series"
Power output: 100 watts per channel into 8Ω (stereo)
Frequency response: 1Hz to 100kHz )-1dB)
Total harmonic distortion: 0.008%
Damping factor: 80 (8 ohm, 1kHz)
Input sensitivity: 0.89V
Signal to noise ratio: 120dB
2x VU-Meters
Headphone Jack
AC Outlet 500 Watts max. Unswitched
Power Consumption 450 Watts

Semiconductors:
2 x IC's, 49 x transistors, 43 x diodes

Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Mentioned in - - Manufacturers Literature (Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
