Solid State Integrated Amplifier SQ-505X

Luxman, Lux Corp.; Kinsuido of Osaka

  • Year
  • 1971 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 300825

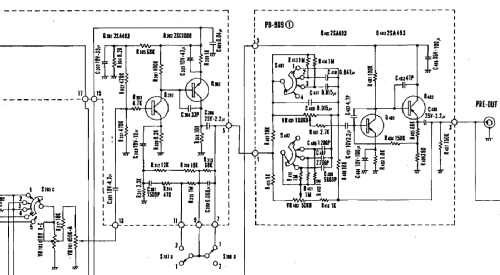

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 31
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Solid State Integrated Amplifier SQ-505X - Luxman, Lux Corp.; Kinsuido of
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 160 x 268 mm / 17.7 x 6.3 x 10.6 inch
  • Notes
  • Power output: 30 Watts per channel into 8Ω (stereo)

    Frequency response: 10 Hz to 60 kHz
    Total harmonic distortion: 0.04 %
    Damping factor: 30
    Input sensitivity: 2mV (MM), 80mV (line)
    Signal to noise ratio: 63 dB (MM), 80 dB (line)
    Power supply selector inside of the unit.

    Volume control without Loudness compensation; amp has 'low boost' switch instead.

    No output overload protection, just fuses.

  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
