Solid State Integrated Amplifier SQ-700XG

Solid State Integrated Amplifier SQ-700XG; Luxman, Lux Corp.; (ID = 575419) Ampl/Mixer
Use red slider bar for more.
Solid State Integrated Amplifier SQ-700XG; Luxman, Lux Corp.; (ID = 575419) Ampl/Mixer

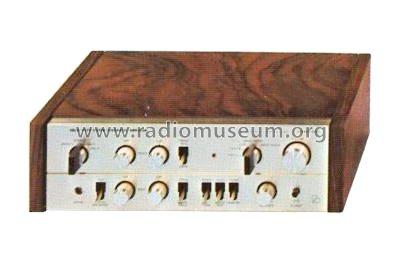

Luxman, Lux Corp.;: Solid State Integrated Amplifier SQ-700XG [Ampl/Mixer] ID = 575419 409x264
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State Integrated Amplifier SQ-700XG, Luxman, Lux Corp.; Kinsuido of Osaka:
Original prospekt in 1975.

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1975 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 28:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: Solid State Integrated Amplifier SQ-700XG - Luxman, Lux Corp.; Kinsuido of
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 130 x 245 mm / 15.7 x 5.1 x 9.6 inch
Notes Integrierter HiFi-Vollverstärker mit 2 x 20 Watt Sinus an 8 Ohm.
Transistoren: 2x 2SD155, 2x 2SA616, 5x 2SC495, 2x 2SA505, 5x XA495C, 8x 2SA493, 4x 2SC1000.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
