Stereo Cassette Deck K-8 All versions

Luxman, Lux Corp.; Kinsuido of Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1980/1981
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 142333

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck K-8 [All versions] - Luxman, Lux Corp.; Kinsuido of
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 438 x 108 x 285 mm / 17.2 x 4.3 x 11.2 inch
  • Notes

  • Luxman K-8, Stereo Cassette Deck;
    Studio Standard Series

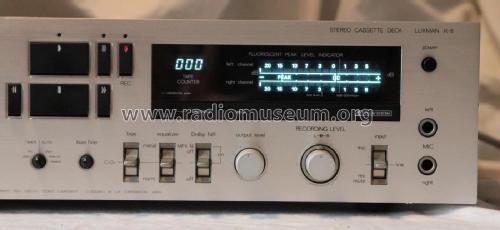

    Fluorescence display with VU levels, RCA terminals, headphone & 2 x mic. jacks, optional wooden side panels known, US version 120 VAC

    Type: 2-head, single compact cassette deck
    Heads:
      1x Record/Player - Sendust (3-lay laminated)
      1x Erace - Sendust
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.75 cm/s
    Motor: DC servo
    Single capstan system
    Operation system - Feather Touch Logic Control System
    Tape Type: type I, CrO2, Metal
    Noise Reduction: B
    Frequency Response: 30 Hz to 17 kHz  (Metal tape)
    Signal to Noise Ratio:
      better than 58 dB  (Dolby off) metal tape
      better than 65 dB  (Dolby on) metal tape
    Wow and Flutter: no more than 0.055 % (R.M.S.)
    Total Harmonic Distortion: 1.5 % (LH Tape, 1 kHz, 0 dB)
    Real Analysed Distortion: no more than 0.7 % (LH Tape, 1 kHz, 0 dB)
    Input: 100 mV (line), 0.3 mV (mic)
    Output: 1 V (line)
    Power consumtion: 30W

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Mentioned in
  • -- Original prospect or advert (Luxman The Complete Audio Products 1980/81 (D))
  • Literature/Schematics (1)
  • Funkschau (23/1980, S. 117 / Gebrauchstest Luxman K-8)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
