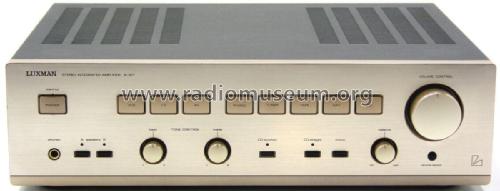

Stereo Integrated Amplifier A-371

Stereo Integrated Amplifier A-371; Luxman, Lux Corp.; (ID = 1882013) Ampl/Mixer Stereo Integrated Amplifier A-371; Luxman, Lux Corp.; (ID = 1882014) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier A-371; Luxman, Lux Corp.; (ID = 1882013) Ampl/Mixer
Luxman, Lux Corp.;: Stereo Integrated Amplifier A-371 [Ampl/Mixer] ID = 1882013 1400x1979
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier A-371, Luxman, Lux Corp.; Kinsuido of Osaka:
Luxman Katalog

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1992–1995 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 140 W (undistorted)
from Radiomuseum.org Model: Stereo Integrated Amplifier A-371 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 438 x 125 x 363 mm / 17.2 x 4.9 x 14.3 inch
Notes

Luxman Stereo Integrated Amplifier Model A-371.
2x 70 Watts Sinus into 8 ohms
Bass- & Treble COntrol
Speakers A, B
10 - 100000Hz +/-1dB
Phono MM 82dB
AUX, Tuner, Tape 97dB
CD Direct
System Bus
Power Consumption 300 Watts.
Finish: Silver metallic or Black

Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 998.00 DM

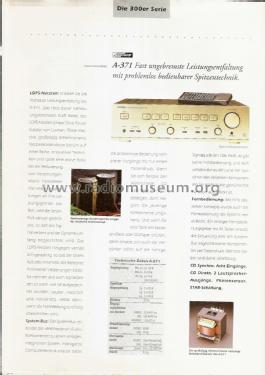

Mentioned in -- Original prospect or advert (Die 300er Serie - 1992/1993)

Model page created by Franz Scharner. See "Data change" for further contributors.
