Stereo Integrated Amplifier LV-107U

Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912798) Ampl/Mixer Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912799) Ampl/Mixer
Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912800) Ampl/Mixer Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912801) Ampl/Mixer
Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912802) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier LV-107U; Luxman, Lux Corp.; (ID = 1912798) Ampl/Mixer
Luxman, Lux Corp.;: Stereo Integrated Amplifier LV-107U [Ampl/Mixer] ID = 1912798 1400x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier LV-107U, Luxman, Lux Corp.; Kinsuido of Osaka:

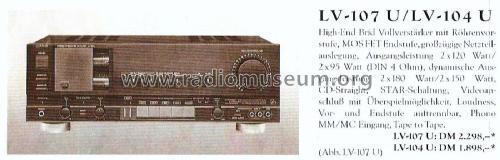

Luxman Katalog - Products 1990

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1990 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (270 W max.)
from Radiomuseum.org Model: Stereo Integrated Amplifier LV-107U - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 438 x 160 x 353 mm / 17.2 x 6.3 x 13.9 inch
Notes

Luxman Stereo Integrated Amplifier Model LV-107U.
Power output:
105 watts per channel into 6Ω (stereo)
80 Watts per Chanel into 8Ω (stereo)
Dynamic Power Output:
135 watts per channel into 8Ω (stereo)
190 watts per channel into 4Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.008%
Inputs:
Phono MM, Phono MC, Tuer, CD, Tape, AV (audio)
Input sensitivity: 0.15mV (MC), 2mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MC), 90dB (MM), 110dB (line)
Tone Controls:
Bass - 100Hz +/-5dB
Treble - 10000Hz +/-6dB
Loudness:
100Hz - +6dB
10000Hz - +5dB


Net weight (2.2 lb = 1 kg) 13.8 kg / 30 lb 6.3 oz (30.396 lb)
Price in first year of sale 778.00 GBP
Mentioned in - - Manufacturers Literature (Service Manual & Instruction/Owners Manual)
Literature/Schematics (1) -- Original prospect or advert (Luxman Katalog - Products)

Model page created by Franz Scharner. See "Data change" for further contributors.
