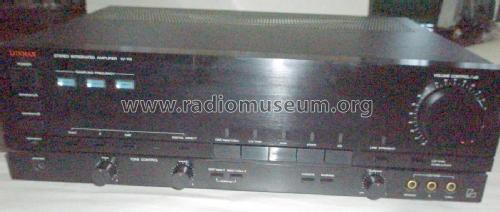

Stereo Integrated Amplifier LV-113

• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1988–1990

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 283428

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 140 W (180 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated Amplifier LV-113 - Luxman, Lux Corp.; Kinsuido of

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 438 x 137 x 382 mm / 17.2 x 5.4 x 15 inch

• Notes

• Other semiconductors: 49 Diodes, 4 Zener diodes, 2 Bridge rectifiers, 25 Integrated/hybrid circuits.

  Rated power output (20Hz .. 20KHz): 70 + 70 w / 8 ohm

  THD ( 8 ohm / 70w): 0,03 %

  Frequency response: 10Hz..100KHz (+0,6 .. -3 dB)

  Video signals switching

  Digital audio I/O Cinch & optical.

  Preamplifier output & Power amplifier input detachable.



• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
