Stereo Power Amplifier M-03

Stereo Power Amplifier M-03; Luxman, Lux Corp.; (ID = 1882234) Ampl/Mixer Stereo Power Amplifier M-03; Luxman, Lux Corp.; (ID = 1882235) Ampl/Mixer
Stereo Power Amplifier M-03; Luxman, Lux Corp.; (ID = 1882236) Ampl/Mixer
Use red slider bar for more.
Stereo Power Amplifier M-03; Luxman, Lux Corp.; (ID = 1882234) Ampl/Mixer
Luxman, Lux Corp.;: Stereo Power Amplifier M-03 [Ampl/Mixer] ID = 1882234 1400x1806
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Power Amplifier M-03, Luxman, Lux Corp.; Kinsuido of Osaka:

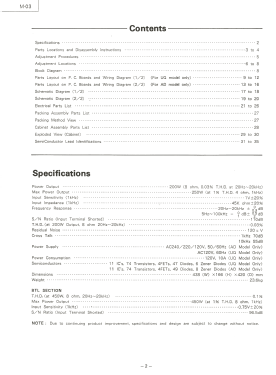

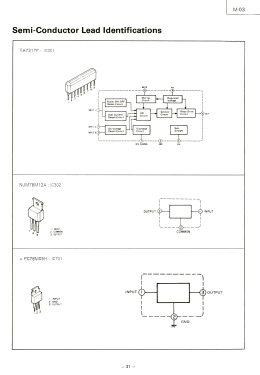

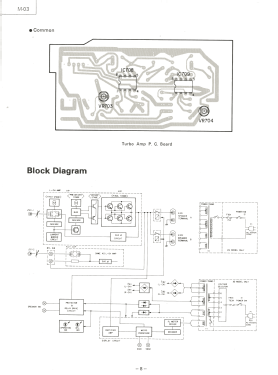

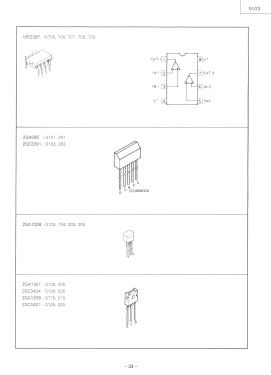

Service Manual

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1992 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 400 W (1000 W max.)
from Radiomuseum.org Model: Stereo Power Amplifier M-03 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 438 x 165 x 420 mm / 17.2 x 6.5 x 16.5 inch
Notes

Luxman Stereo Power Amplifier Model M-03.
Ausgangsleistung:
DIN, 1kHz, 4 Ohm: 2x 270 Watt
FTC, 20 - 20000Hz, 8 Ohm: 2x 200 Watt
Dynamische Ausgangsleistung:
2 Ohm: 2x 700 Watt
4 Ohm: 2x 500 Watt
Mono (BTL)-Betrieb:
1kHz, 8 Ohm 480 Watt, 8Ohm (beim Clipping) 700 Watt
10-100000Hz (+0,-1 dB)
120dB
Speakers A, B
Digitale Spitzenwertanzeige - Computer Controlled Peak Power Level Indicator / Watts

Auch in schwarz erhältlich - Luxman M-03B.


Net weight (2.2 lb = 1 kg) 23.6 kg / 51 lb 15.7 oz (51.982 lb)
Mentioned in -- Original prospect or advert (Luxman - Die 300er Serie - 1992/1993)

Model page created by Franz Scharner. See "Data change" for further contributors.
