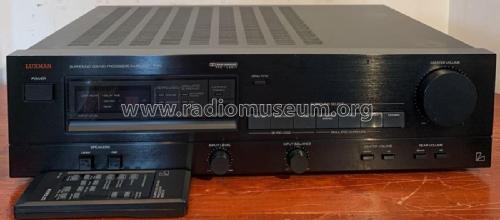

Surround Sound Processor Amplifier F-114

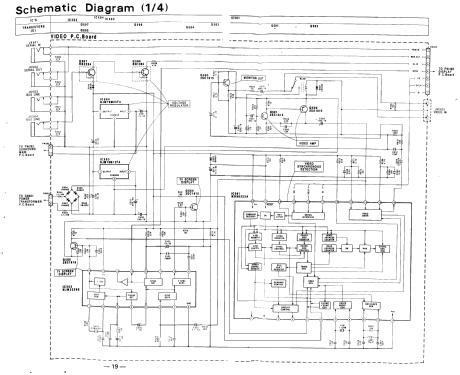

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873565) Ampl/Mixer

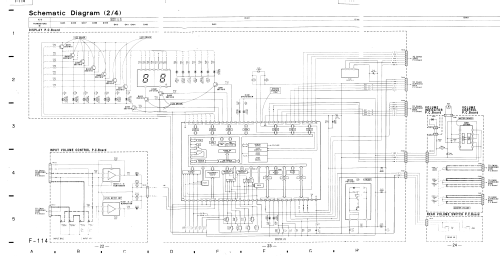

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873566) Ampl/Mixer

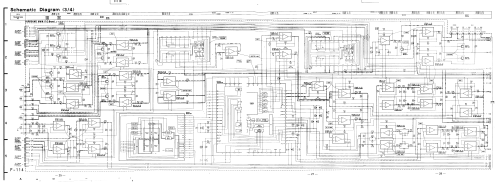

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873568) Ampl/Mixer

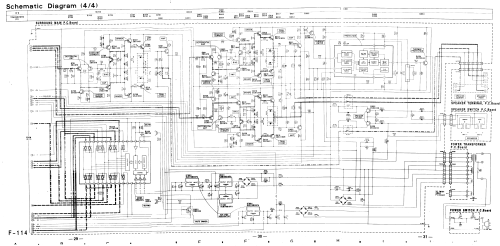

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873571) Ampl/Mixer

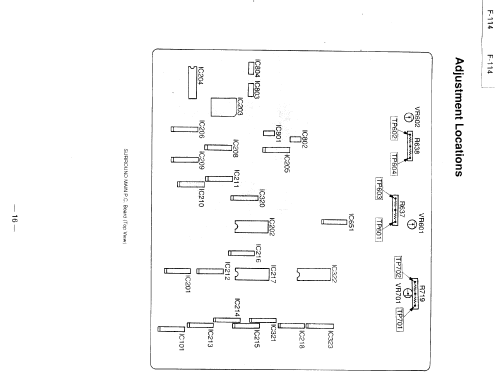

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873577) Ampl/Mixer

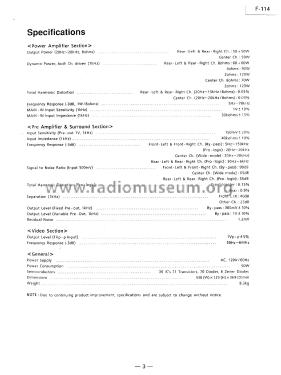

Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873013) Ampl/Mixer Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873014) Ampl/Mixer
Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873549) Ampl/Mixer Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873551) Ampl/Mixer
Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873574) Ampl/Mixer
Use red slider bar for more.
Surround Sound Processor Amplifier F-114; Luxman, Lux Corp.; (ID = 1873013) Ampl/Mixer
Luxman, Lux Corp.;: Surround Sound Processor Amplifier F-114 [Ampl/Mixer] ID = 1873013 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Surround Sound Processor Amplifier F-114, Luxman, Lux Corp.; Kinsuido of Osaka:
Luxman Service Manual

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1991 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 71:
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (undistorted)
from Radiomuseum.org Model: Surround Sound Processor Amplifier F-114 - Luxman, Lux Corp.; Kinsuido of
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 438 x 123 x 369 mm / 17.2 x 4.8 x 14.5 inch
Notes

Luxman Surround Sound Processor/Amplifier Model F-114.
Surround output: 50W (center), 50W (rear left), 50W (rear right)
Speaker load impedance: 8Ω to 16Ω
Video Connections: composite

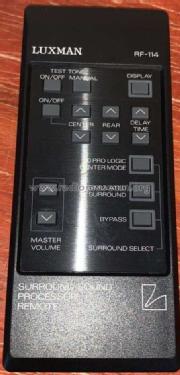

Accessories: Luxman RF-114 remote control
Power Cosumpton 50 Watts
Semiconductors:
36x IC's, 71x Transistors, 70x Diodes, 6x Zener Diodes

Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Mentioned in -- Original-techn. papers. (Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
