Solid State AM-FM Stereo Tuner T-550

Solid State AM-FM Stereo Tuner T-550; Luxman, Lux Corp.; (ID = 575981) Radio
Use red slider bar for more.
Solid State AM-FM Stereo Tuner T-550; Luxman, Lux Corp.; (ID = 575981) Radio

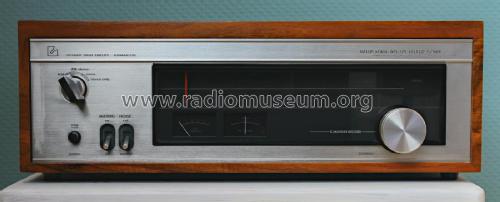

Luxman, Lux Corp.;: Solid State AM-FM Stereo Tuner T-550 [Radio] ID = 575981 481x225
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State AM-FM Stereo Tuner T-550, Luxman, Lux Corp.; Kinsuido of Osaka:
Original prospekt in 1975.

Country:  Japan
Manufacturer / Brand:  Luxman, Lux Corp.; Kinsuido of Osaka
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Solid State AM-FM Stereo Tuner T-550 - Luxman, Lux Corp.; Kinsuido of
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 160 x 268 mm / 17.7 x 6.3 x 10.6 inch
Notes AM/FM Stereo Tuner.
Signal Strenght- and Tuning-Meter.
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
