193GW

Luxor Radio AB; Motala

Data

Forum

Pictures

Collections

Country
Sweden

Manufacturer / Brand
Luxor Radio AB; Motala

Year
1949

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
147878

- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Schematics

193GW; Luxor Radio AB; (ID = 571854) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571873) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571864) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571856) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571857) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571865) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571871) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 571881) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 600170) Radio — Luxor Radio AB; 193GW (2)

193GW; Luxor Radio AB; (ID = 1021124) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1021125) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1021126) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1021127) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1021128) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1021129) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053629) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053631) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053634) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053635) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053636) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053637) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 1053641) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 2684070) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 2684071) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 2684072) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 2684073) Radio — Luxor Radio AB; 193GW (1)

193GW; Luxor Radio AB; (ID = 2968791) Radio — Luxor Radio AB; 193GW (1)

Technical Specifications

Number of Tubes
5

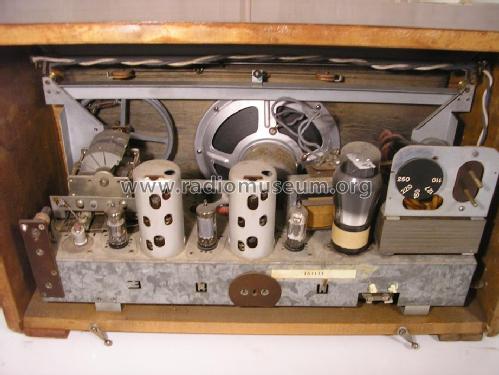

Valves / Tubes
6J6 6BA6 6AT6 6V6 6X5

Main principle
Superheterodyne (common); ZF/IF 474 kHz; 2 AF stage(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

Material
Wooden case

from Radiomuseum.org
Model: 193GW - Luxor Radio AB; Motala

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
490 x 315 x 220 mm / 19.3 x 12.4 x 8.7 inch

Notes

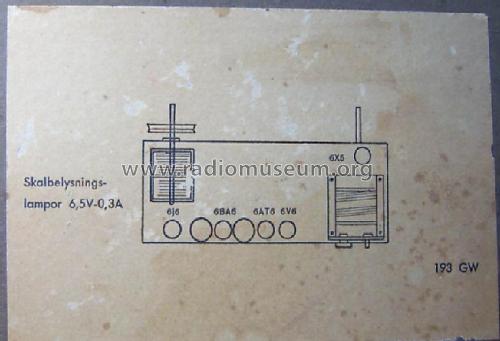

Dial lamps: 2x 6,5V/0,3A.

Net weight (2.2 lb = 1 kg)
10.4 kg / 22 lb 14.5 oz (22.907 lb)

Author
Model page created by Adamantios Nikolaidis Wentzelopoulos. See "Data change" for further contributors.
