52WL

52WL; Luxor Radio AB; (ID = 18581) Radio

52WL; Luxor Radio AB; (ID = 2467254) Radio

52WL; Luxor Radio AB; (ID = 2467255) Radio

52WL; Luxor Radio AB; (ID = 2467256) Radio

52WL; Luxor Radio AB; (ID = 2467257) Radio
Use red slider bar for more.
52WL; Luxor Radio AB; (ID = 18581) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12J8EG 12K7G 12Q7G 35L6EG 35Z5G
Main principle ZF/IF 490 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 135; 150; 190; 220; 250 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 52WL - Luxor Radio AB; Motala
External source of data E. Erb 3-907007-36-0

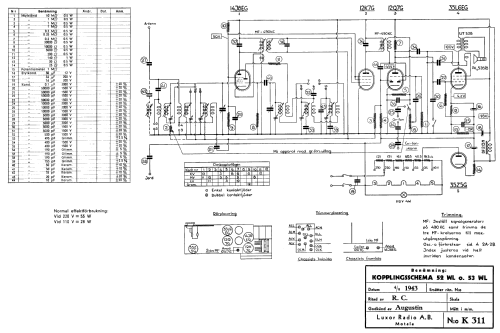

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Luxor Radio AB; Motala
Here you find 367 models, 272 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
