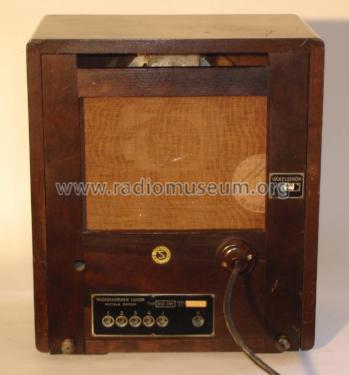

612DW; Luxor Radio AB; (ID = 2620864) Radio 612DW; Luxor Radio AB; (ID = 2620867) Radio
612DW; Luxor Radio AB; (ID = 2620865) Radio 612DW; Luxor Radio AB; (ID = 2620862) Radio
612DW; Luxor Radio AB; (ID = 2620866) Radio 612DW; Luxor Radio AB; (ID = 665978) Radio
612DW; Luxor Radio AB; (ID = 778624) Radio 612DW; Luxor Radio AB; (ID = 778625) Radio
Use red slider bar for more.
612DW; Luxor Radio AB; (ID = 2620861) Radio
Luxor Radio AB;: 612DW [Radio] ID = 2620861 1400x1495
Select picture or schematic to display from thumbnails on the right and click for download.
For model 612DW, Luxor Radio AB; Motala

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: MS4B E443H 506
schematic requested
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 612DW - Luxor Radio AB; Motala
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 310 x 360 x 200 mm / 12.2 x 14.2 x 7.9 inch
Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
Price in first year of sale 165.00 SEK
Source of data - - Data from my own collection

Model page created by Jörgen Svensson. See "Data change" for further contributors.
