653DW

653DW; Luxor Radio AB; (ID = 609078) Radio 653DW; Luxor Radio AB; (ID = 609084) Radio
653DW; Luxor Radio AB; (ID = 609085) Radio 653DW; Luxor Radio AB; (ID = 609082) Radio
653DW; Luxor Radio AB; (ID = 609083) Radio 653DW; Luxor Radio AB; (ID = 609086) Radio

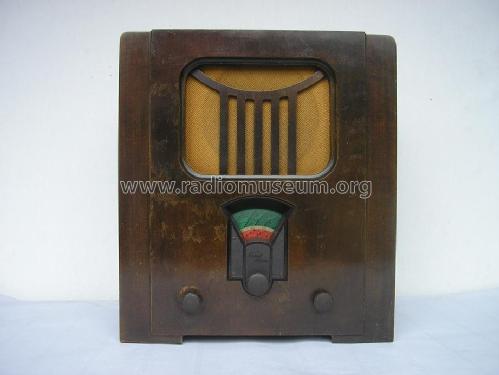

653DW; Luxor Radio AB; (ID = 1229695) Radio 653DW; Luxor Radio AB; (ID = 1642287) Radio
Use red slider bar for more.
653DW; Luxor Radio AB; (ID = 609078) Radio
Luxor Radio AB;: 653DW [Radio] ID = 609078 638x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 653DW, Luxor Radio AB; Motala

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1934–1936 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK1 MS4B AB1 E443H U12
Main principle Super-Heterodyne (Super in general); 1 AF stage(s); Super, reaction, but not adjustable
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 653DW - Luxor Radio AB; Motala
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 390 x 440 x 250 mm / 15.4 x 17.3 x 9.8 inch
Source of data - - Data from my own collection

Model page created by a member from D. See "Data change" for further contributors.
