Karriär 5077

Karriär 5077; Luxor, Helsinki - (ID = 765335) Radio Karriär 5077; Luxor, Helsinki - (ID = 765336) Radio
Karriär 5077; Luxor, Helsinki - (ID = 765337) Radio Karriär 5077; Luxor, Helsinki - (ID = 765338) Radio

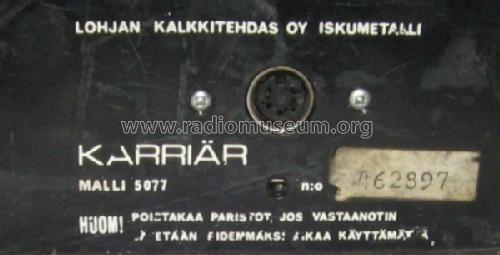

Karriär 5077; Luxor, Helsinki - (ID = 765340) Radio
Use red slider bar for more.
Karriär 5077; Luxor, Helsinki - (ID = 765335) Radio
Luxor, Helsinki -: Karriär 5077 [Radio] ID = 765335 850x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model Karriär 5077, Luxor, Helsinki - see also Sweden

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: Karriär 5077 - Luxor, Helsinki - see also
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 180 x 75 mm / 11.8 x 7.1 x 3 inch
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data - - Data from my own collection

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
