• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18204

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J9SG 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

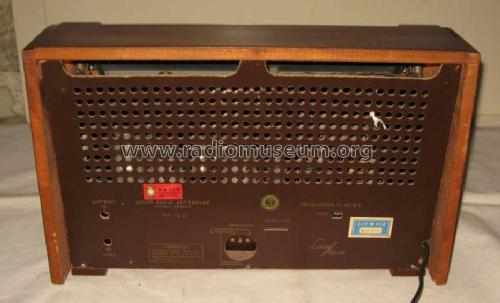

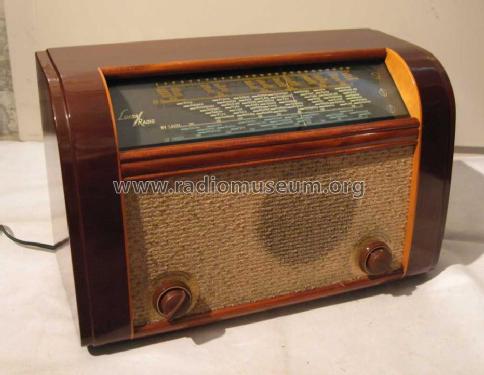

• Model: Populär-Supern 74W - Luxor Radio AB; Motala

• Dimensions (WHD)
• 490 x 310 x 220 mm / 19.3 x 12.2 x 8.7 inch

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Other Models

• Here you find 399 models, 306 with images and 141 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
