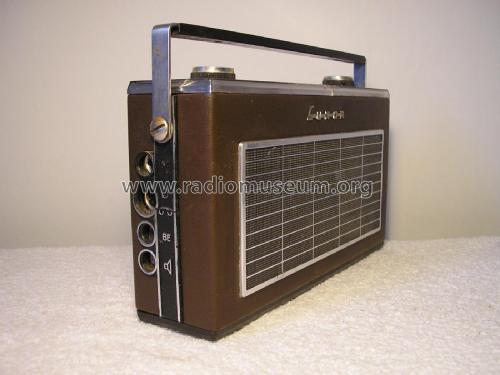

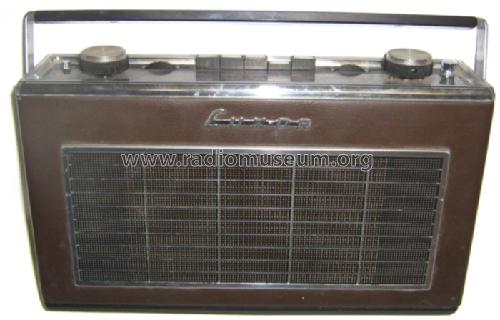

West Side Selektomat B4973

West Side Selektomat B4973; Luxor, Helsinki - (ID = 757231) Radio

West Side Selektomat B4973; Luxor, Helsinki - (ID = 757232) Radio

West Side Selektomat B4973; Luxor, Helsinki - (ID = 757233) Radio

West Side Selektomat B4973; Luxor, Helsinki - (ID = 757234) Radio

West Side Selektomat B4973; Luxor, Helsinki - (ID = 1332227) Radio

West Side Selektomat B4973; Luxor, Helsinki - (ID = 1332228) Radio
West Side Selektomat B4973; Luxor, Helsinki - (ID = 383617) Radio West Side Selektomat B4973; Luxor, Helsinki - (ID = 719185) Radio
West Side Selektomat B4973; Luxor, Helsinki - (ID = 383619) Radio West Side Selektomat B4973; Luxor, Helsinki - (ID = 383618) Radio
West Side Selektomat B4973; Luxor, Helsinki - (ID = 719183) Radio West Side Selektomat B4973; Luxor, Helsinki - (ID = 1876165) Radio
West Side Selektomat B4973; Luxor, Helsinki - (ID = 1876166) Radio West Side Selektomat B4973; Luxor, Helsinki - (ID = 1876167) Radio
West Side Selektomat B4973; Luxor, Helsinki - (ID = 1876168) Radio West Side Selektomat B4973; Luxor, Helsinki - (ID = 1876169) Radio
Use red slider bar for more.

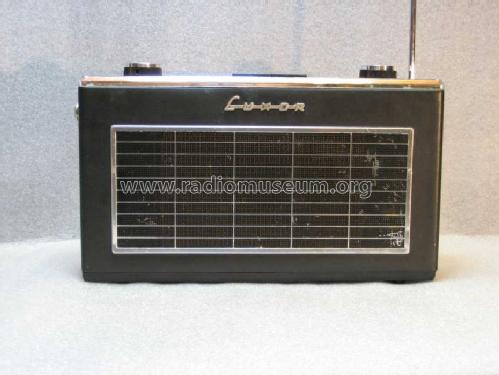

West Side Selektomat B4973; Luxor, Helsinki - (ID = 383617) Radio
Luxor, Helsinki -: West Side Selektomat B4973 [Radio] ID = 383617 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model West Side Selektomat B4973, Luxor, Helsinki - see also Sweden

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF125 AF125 AF126 AF126 AC151 AC152 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 462/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: West Side Selektomat B4973 - Luxor, Helsinki - see also
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 160 x 70 mm / 11 x 6.3 x 2.8 inch
Notes 3 pre-select FM-station on FM-dial.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Schematic

Model page created by Eero Ukkola. See "Data change" for further contributors.
