Bipolar Pulse Generator PG-71N
Lyons Instruments Ltd.; Hoddesdon
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Lyons Instruments Ltd.; Hoddesdon
- Year
- 1977 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 361691
eBay item number:286582823600
eBay item number:286582823600
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Bipolar Pulse Generator PG-71N - Lyons Instruments Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

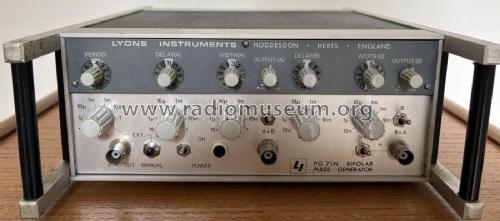

Dual-channel instrument with channel mixing facilities.
PRF 5 Hz - 5 MHz.
Provides dual-switch selectable positive/positive (pos/pos) or positive/negative (pos/neg) 10 V outputs.
Similar to the model PG-71, which provides dual positive 10 V outputs.
- Mentioned in
- -- Original prospect or advert (Electronic Engineering, February 1977)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
