• Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 278869

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 485 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 1,5 & 95 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

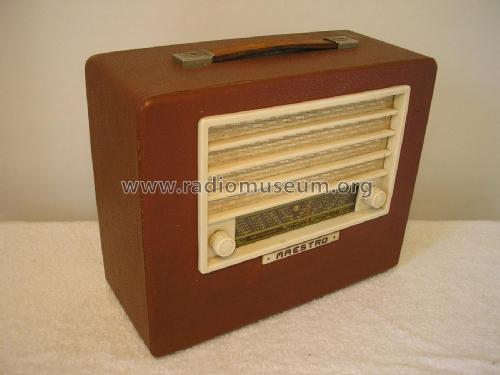

  • Model: 495M - Maestro, Turku
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 315 x 260 x 145 mm / 12.4 x 10.2 x 5.7 inch
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
