• Country
• Spain

• Manufacturer / Brand
• Magestico (Magnedine, Radio Pujals); Barcelona

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 322787

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF115 AF116 AF116 OC75 OC75 OC74 OC74 OA79

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Batteries / addl. power jack / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

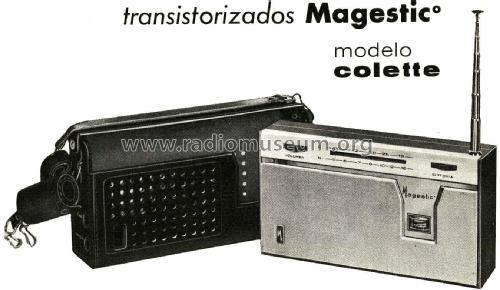

• Model: Colette 1012 - Magestico Magnedine, Radio

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 200 x 110 x 50 mm / 7.9 x 4.3 x 2 inch

• Notes

• Magestico (Magnedine, Radio Pujals), Colette 1012

  Con indicador de sintonía por microamperímetro

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
