• Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 230097

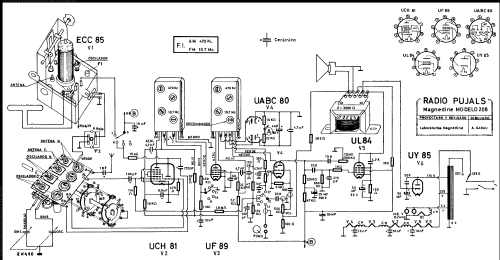

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: Magnedine Doyen P Ch= 208 - Magestico Magnedine, Radio
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 340 x 210 x 155 mm / 13.4 x 8.3 x 6.1 inch
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
