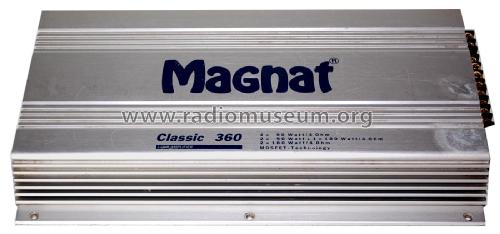

Car Amplifier Classic 360

Magnat; Pulheim

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 333979

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 360 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Car Amplifier Classic 360 - Magnat; Pulheim
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 419 x 54 x 257 mm / 16.5 x 2.1 x 10.1 inch
  • Notes

  • Das Modell Car Amplifier Classic 360 von Magnat ist ein Auto-Verstärker mit einer Ausgangsleistung von 4 x 90 W an 4 Ω.

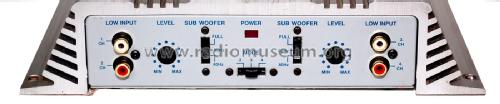

    Produkt-Information:

    • Frequenzgang: 5 Hz - 50 kHz
    • Niederpegel-Ausgänge
    • Variabler Tief- und Hochpass: 40 - 300 Hz (12 dB pro Oktave)
    • Variabler Bass Boost: 0...12 dB bei 45 Hz
    • Vergoldete Chinchbuchsen
    • Schutzschaltung gegen Kurzschluss
    • MOSFET-Technology
    • Aluminiun Kühlkörper

  • Net weight (2.2 lb = 1 kg)
  • 4.3 kg / 9 lb 7.5 oz (9.471 lb)
  • Author
  • Model page created by Jürgen Küting. See "Data change" for further contributors.
