• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1946/1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248887

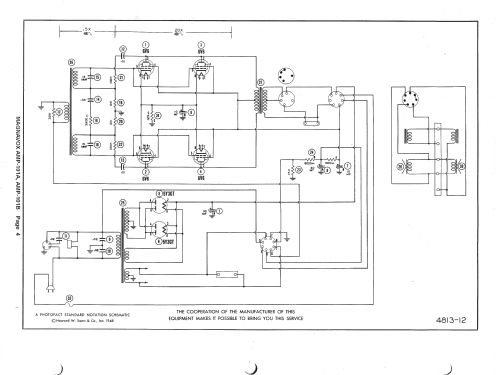

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 142B CR188C, AMP101B - Magnavox Co., Commercial

• Shape
• Console with Push Buttons.

• Notes

• AM/Short Wave Receiver Phonograph combination.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 43 Folder 12 dated 08-48)

• Author
• Model page created by Stephanie Hanson. See "Data change" for further contributors.
