- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 320211
Not the original platter mat.
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 35 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1P3303 - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 36.5 x 25.25 x 16.25 inch / 927 x 641 x 413 mm
- Notes
-
4-Speed automatic record changer has trade name: Magnavox Model W626 Series.
The record changer's power supply is 110-120 Volts AC, 60 Hz.
- Net weight (2.2 lb = 1 kg)
- 60 lb 8 oz (60.5 lb) / 27.467 kg
- Literature/Schematics (1)

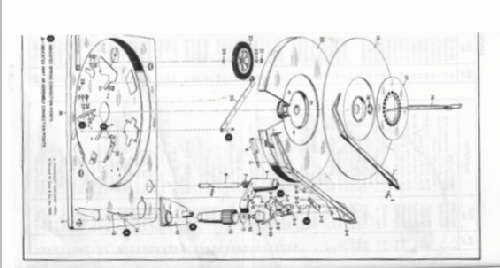

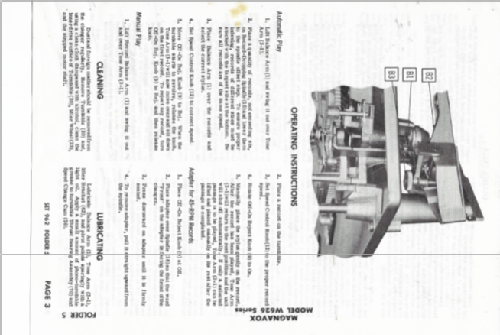

- Photofact Folder, Howard W. SAMS (Set 962, Folder 5, June 1968 (for record changer))
- Author
- Model page created by Timothy Koceja. See "Data change" for further contributors.
