- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265495
Front and top console view
Chassis
Model, run and serial number label
Rear speaker and other connections
Underside of record changer

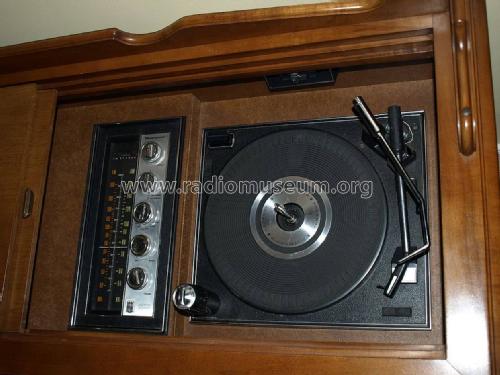

AM/FM tuner and changer
Console side
Speaker
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1P3682 - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 52 x 29.5 x 19.5 inch / 1321 x 749 x 495 mm
- Notes
-
Solid state stereo, AM/FM tuner / record changer.
- Author
- Model page created by Michael Waitz. See "Data change" for further contributors.
- Other Models
-
Here you find 1110 models, 528 with images and 813 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Collections
The model 1P3682 is part of the collections of the following members.
