1R 1006
Use red slider bar for more.
Magnavox Co.,: 1R 1006 [Radio] ID = 441647 669x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm |
| Power out | |
| from Radiomuseum.org | Model: 1R 1006 - Magnavox Co., Commercial |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 2.375 x 2.375 x 1 inch / 60 x 60 x 25 mm |
| Net weight (2.2 lb = 1 kg) | 0.1 kg / 0 lb 3.5 oz (0.22 lb) |
| Source of data | - - Data from my own collection |
Model page created by Hamish Galloway. See "Data change" for further contributors.
All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Here you find 997 models, 491 with images and 700 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
Forum contributions about this model
Magnavox Co.,: 1R 1006
Threads: 1 | Posts: 1
|
Hits: 1953 Replies: 0
magnavox: 1R 1006 (1 R 1006)
|
|
|
Hamish Galloway
08.Apr.08 |

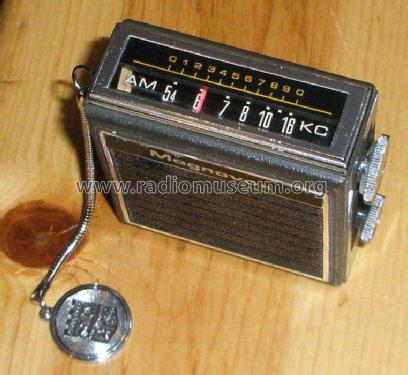

1 Although Magnavox is a U.S. based company, this model is marked "Japan" . The key tag is marked on back "MAGNA-MATE VII". |
