• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285729

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6DT8 6BE6 6BA6 6BA6 6AL5 6EU7 6EA8 6EU7 6EU7 6EU7 12AT7 6BQ5 6BQ5 6BQ5 6BQ5 5U4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 12 inch = 30.5 cm

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1ST622A Ch=9304-10 - Magnavox Co., Commercial

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 40 x 28 x 18 inch / 1016 x 711 x 457 mm

• Notes

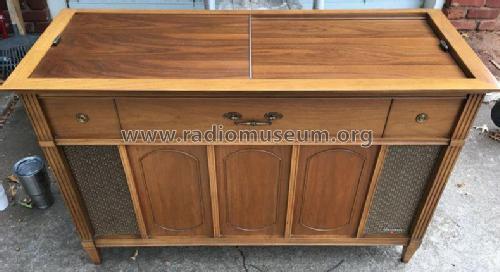

• This is an interesting Magnavox console.  The unit has a 9300 series power amp, a tuner/preamp and a tube multiplex unit.  The speakers are CTS 12" permanent magnet speakers and high-frequency horns.  The 4 speed, record player is made in England.  The tone arm uses the touch method to gauge the size of the record being played.  With the use of the multiplex unit, FM radio is stereo.  The overall visual condition in outstanding.

• Net weight (2.2 lb = 1 kg)
• 45 lb (45 lb 0 oz) / 20.430 kg

• Price in first year of sale
• 229.00 $

• Author
• Model page created by Doug Patterson. See "Data change" for further contributors.
