8 Transistor 2-AM-802

8 Transistor 2-AM-802; Magnavox Electronics (ID = 761304) Radio 8 Transistor 2-AM-802; Magnavox Electronics (ID = 761305) Radio
8 Transistor 2-AM-802; Magnavox Electronics (ID = 761306) Radio 8 Transistor 2-AM-802; Magnavox Electronics (ID = 761307) Radio
8 Transistor 2-AM-802; Magnavox Electronics (ID = 1441271) Radio 8 Transistor 2-AM-802; Magnavox Electronics (ID = 2316126) Radio
8 Transistor 2-AM-802; Magnavox Electronics (ID = 2316127) Radio 8 Transistor 2-AM-802; Magnavox Electronics (ID = 2316128) Radio
8 Transistor 2-AM-802; Magnavox Electronics (ID = 2316129) Radio 8 Transistor 2-AM-802; Magnavox Electronics (ID = 2316130) Radio
Use red slider bar for more.
8 Transistor 2-AM-802; Magnavox Electronics (ID = 761304) Radio
Magnavox Electronics: 8 Transistor 2-AM-802 [Radio] ID = 761304 640x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Transistor 2-AM-802, Magnavox Electronics Ltd; Barking

Country:  Great Britain (UK)
Manufacturer / Brand:  Magnavox Electronics Ltd; Barking
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 8 Transistor 2-AM-802 - Magnavox Electronics Ltd;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 120 x 77 x 39 mm / 4.7 x 3 x 1.5 inch
Notes

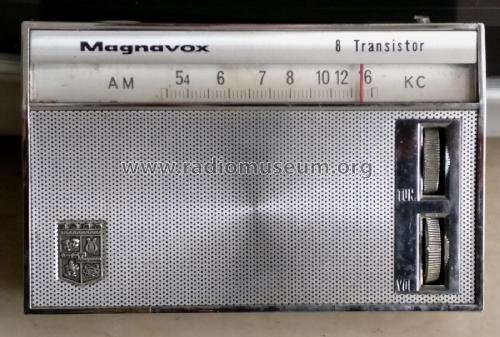

Magnavox 8 Transistor AM Portable Radio Model 2-AM-802.
Earphone Jack, Tuning Range AM 535-1605kHz.

See USA version Magnaxox AM-802

Made in Japan.

Model page created by Angelo Daniele. See "Data change" for further contributors.
