• Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 92708

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • from Radiomuseum.org
  • Model: 2ST690 Ch= R207 - Magnavox Co., Commercial
  • Notes
  • Chassis R207 is an AM/FM Tuner.

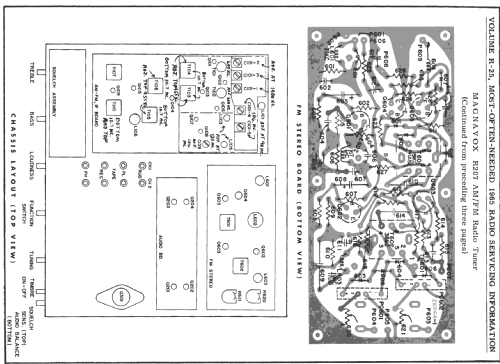

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 25, 1965
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
