- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 139291
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: 80-02-00 - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes

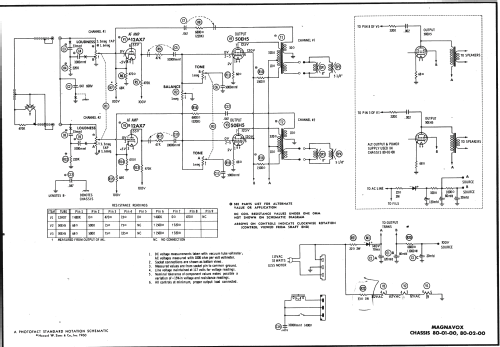

- AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 508 folder 13 date 11-60 features the Magnavox Chassis 80-01-00 and 80-02-00 as the same schematic
- Literature/Schematics (1)

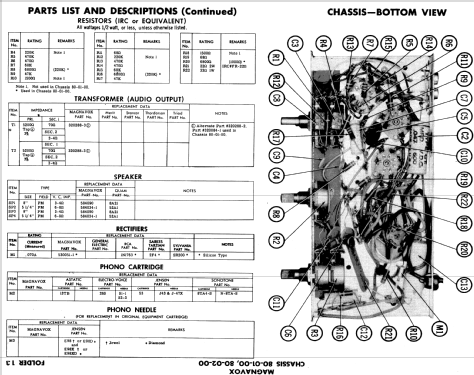

- Photofact Folder, Howard W. SAMS (Set 508 folder 13 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
