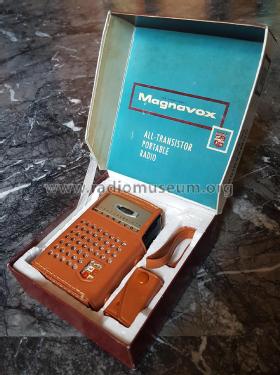

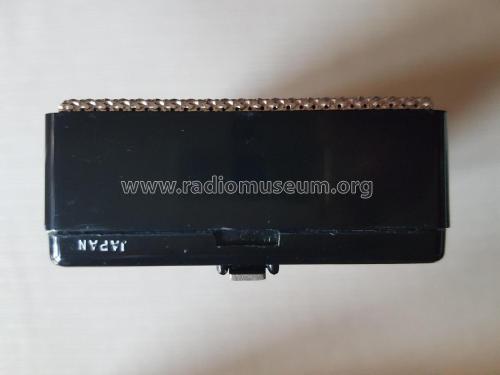

8 Transistor "Companion" AM-80-1
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328407
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Power out
- 0.12 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor "Companion" AM-80-1 - Magnavox Co., Commercial
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 60 x 100 x 30 mm / 2.4 x 3.9 x 1.2 inch
- Notes
-
Identical to model AM-80 but with type 206 battery
- Author
- Model page created by Mirko Bersani. See "Data change" for further contributors.
