• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1963 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 90923

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6EU7 6EU7 6BQ5 6BQ5 6BQ5 6BQ5 5U4

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org

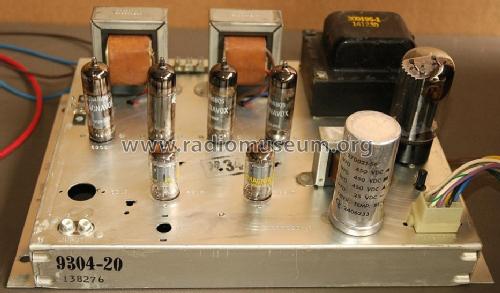

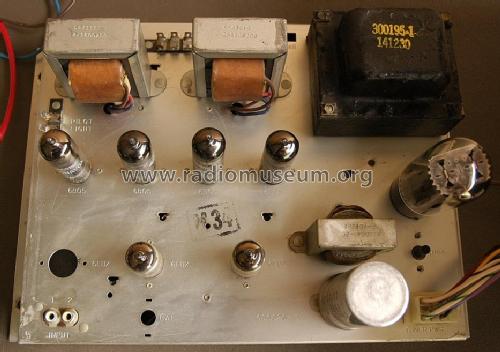

• Model: 93-04 - Magnavox Co., Commercial

• Notes
• The 93 Series Stereo-Amplifiers designed to work in conjunction with an AM-FM Tuner.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
