For model AM-2 Ch= CR729AA, CR729BA and CR729CA, Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

Country:  United States of America (USA)
Manufacturer / Brand:  Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N172 2N145 2N147 1N295 TI310 TI353 TI353
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / Eveready 233 for 4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: AM-2 Ch= CR729AA, CR729BA and CR729CA - Magnavox Co., Commercial
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 145 x 88 x 40 mm / 5.7 x 3.5 x 1.6 inch
Notes

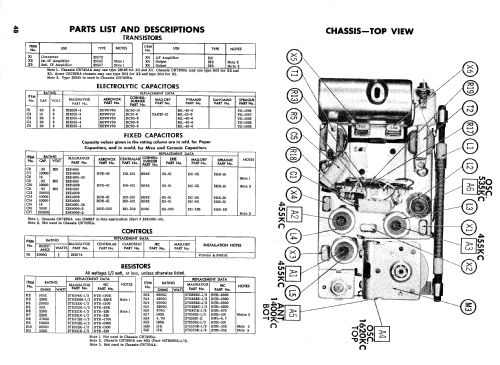

The Photofact Annual Index indicates for this model Magnavox "AM-2 all transistor" set 342, folder 9. and the Transistor Book shows a folder with chassis CR729AA and CR729BA. SAMS says that chassis CR729BA should not have the following components: R3, R6, C10, C17. There is a note: "Chassis number was not stamped on initial production chassis. These chassis are CR729AA."

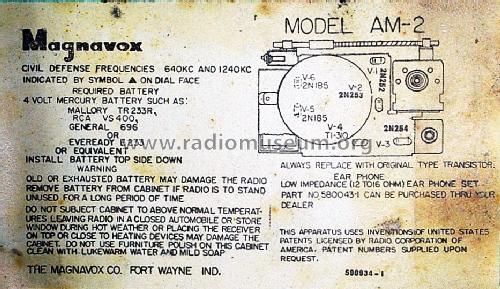

The AM-2 was coming in three colors: "Cabinet back" in Red, Ivory or Black. It is made for a power supply of a 4 volts mercury battery "Eveready E233".

The chassis CR729CA was also produced and a picture is available.

An article about the Magnavox AM-2 is published in Italian in Antique Radio Magazine n. 114 (July-August 2013), page 24.

ABS cabinet. Genuine leather case with bottom compartment for earphone.

It was produced also with at least two additional Magnavox brands: Spartan and Sentinel. Externally it was imitated by Ful-Tone TR-601 and several other brands therein reported.

Net weight (2.2 lb = 1 kg) 0.610 kg / 1 lb 5.5 oz (1.344 lb)

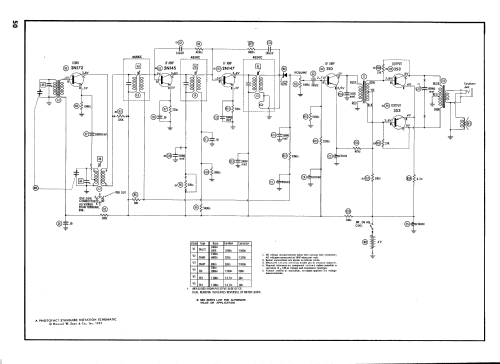

Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Mentioned in Photofact Folder, Howard W. SAMS (Set 388 Production Changes Bulletin 201 dated 2-58)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS

Model page created by Egon Penker. See "Data change" for further contributors.
