Pocket-mate AM-60

• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86357

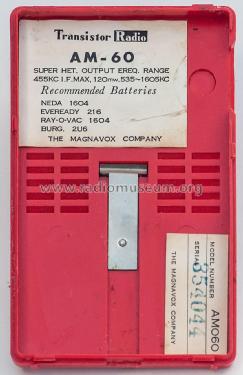

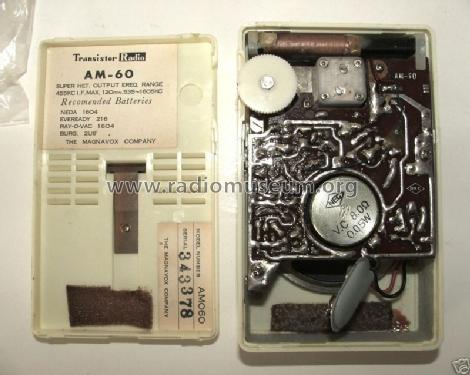

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA159 2SA154 2SA154 2SB112 2SB112 2SB112 SD46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pocket-mate AM-60 - Magnavox Co., Commercial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 105 x 25 mm / 2.6 x 4.1 x 1 inch

• Notes

• Made in Japan by NEC

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 150)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 553, Folder 9, December 1961)

• Literature/Schematics (3)
• Radio! Radio!
