- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166107
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= 51-04 - Magnavox Co., Commercial
- Shape
- Console with any shape - in general
- Notes
- The Magnavox Chassis Ch= 51-04 is an AC operated 11 Tube AM-FM Tuner and Amplifier with 4 Speed Automatic Record Changer.
- Literature/Schematics (1)

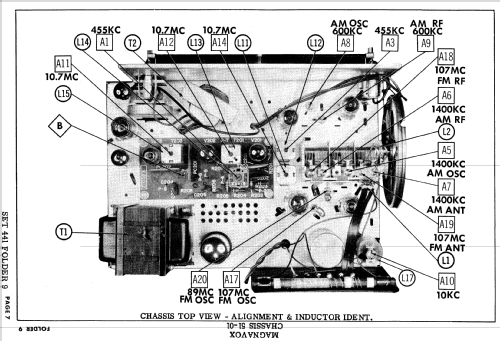

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
