- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165974
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= 52-02 - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Magnavox Chassis 52-02 is an External powered FM-AM 10 Tube Tuner.
- Literature/Schematics (1)

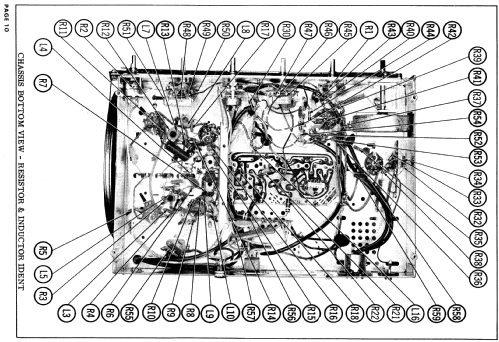

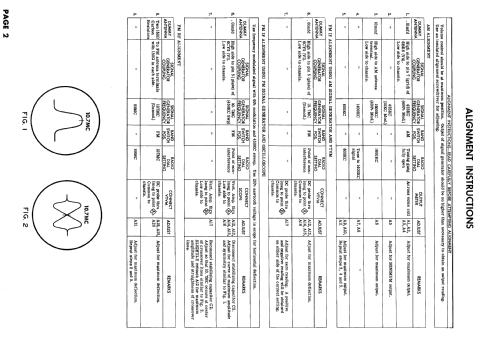

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
