• Year
  • 1958 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 183398

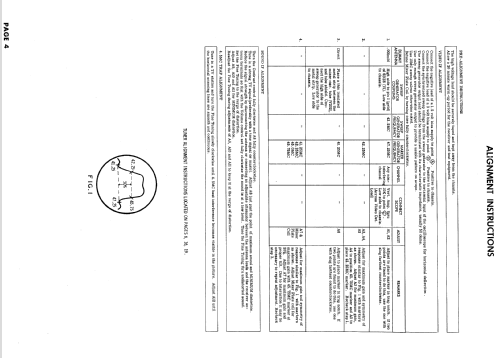

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Chassis Ch= U25-03AA - Magnavox Co., Commercial
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Magnavox Chassis U25-03AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-UHF tuner 700627 and picture tube 21CBP4.



  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
