Chassis V24-01AA (24 Series)
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 323250
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BN4 6CG8A 6BZ6 6BZ6 6CB6 12BY7A 6AU6 6DT6 6DG6GT 12AU7A 6CM7 6SN7GTB 6DQ6A 6AX4GT 1B3GT 5U4GB 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis V24-01AA - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

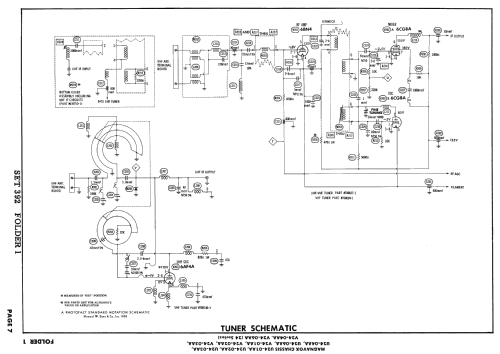

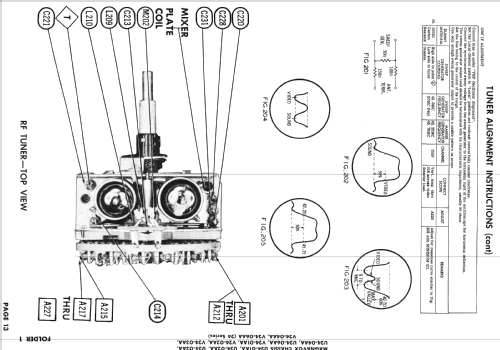

Magnavox Chassis V24-01AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 700624-1 and picture tube 21CBP4A.

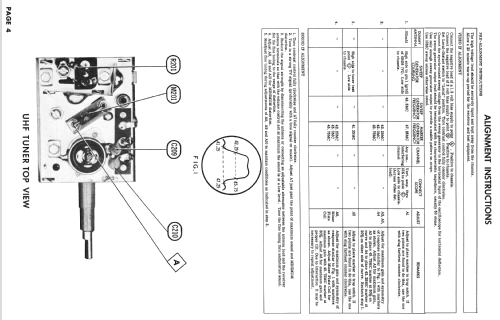

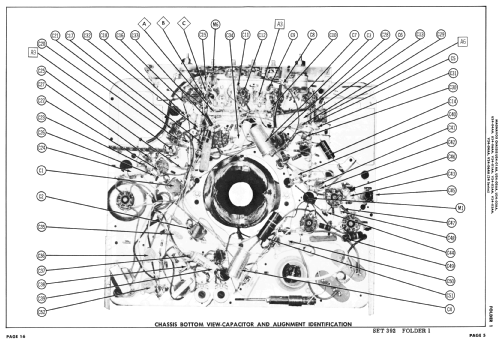

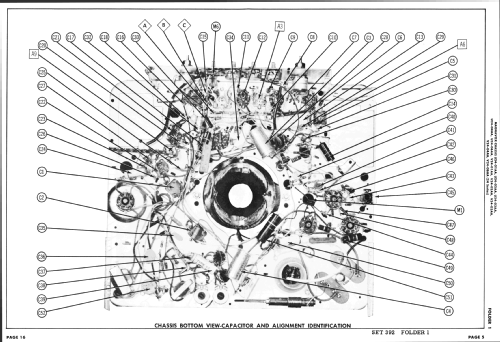

- Literature/Schematics (1)

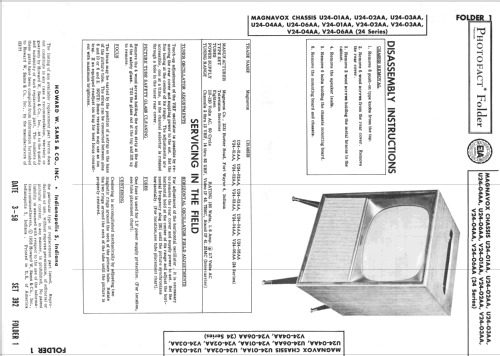

- Photofact Folder, Howard W. SAMS (Set 392 Folder 1 dated 3-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
