Ch= CMUA465AA 650 Series
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272285

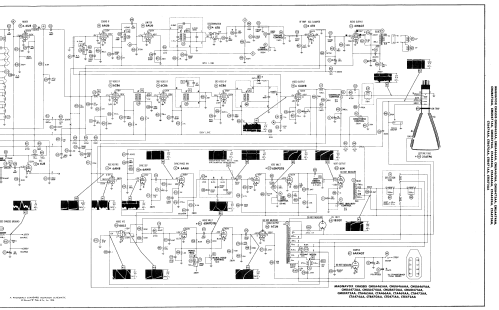

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7A 6U8 6T4 6CB6 6CB6 6CB6 6AW8 6AN8 6AU6 6AU6 6T8 6W6GT 6SN7GTB 6S4 6AL5 6SN7GTB 6CU6 6AX4GT 1B3GT 5U4G 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= CMUA465AA 650 Series - Magnavox Co., Commercial
- Shape
- Console, Highboy (legs > 50 %).
- Notes
-

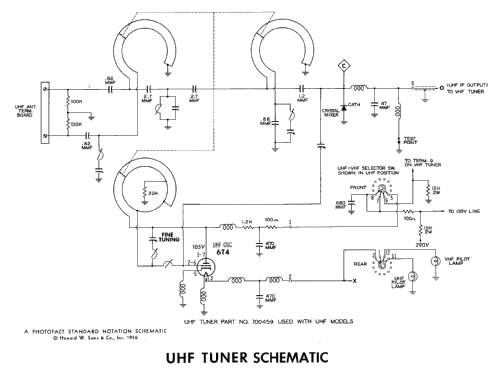

The Magnavox chassis CMUA465AA 650 series is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner 700458-2, UHF tuner 700459-1 and picture tube 21ATP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 317 Folder 7 dated 56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 329 Folder 1 dated 9-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
