- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 314310

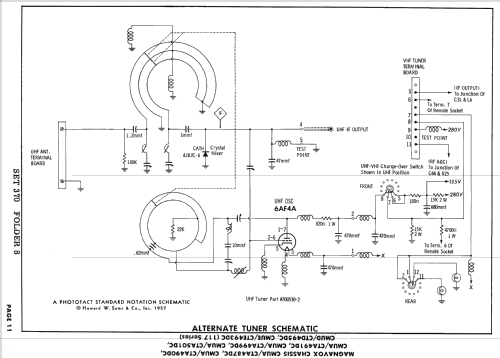

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AF4A 6BC8 6U8 6BZ6 6BZ6 6CB6 6AW8 6AN8 6AU6 6AU6 6T8 6DG6GT or 6W6GT 6SN7GTB 6S4A 6AL5 6SN7GTB 6DQ6A or 6CU6 or 6DQ6 6AX4GT 1B3GT 5U4GB 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: CMUA499DC 117 Series - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
-
Magnavox Chassis CMUA499DC 117 Series is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-tuner 700541-3, UHF tuner 700530-2 and picture tube 21ATP4.
- Literature/Schematics (1)
- Photofact CB Radio Manual, SAMS (Set 370 Folder 8 dated 9-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 1079 models, 495 with images and 831 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
