• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 261669

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 21
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Ch= CMUA501CC 117 Series - Magnavox Co., Commercial
  • Shape
  • Chassis only or for «building in»
  • Notes

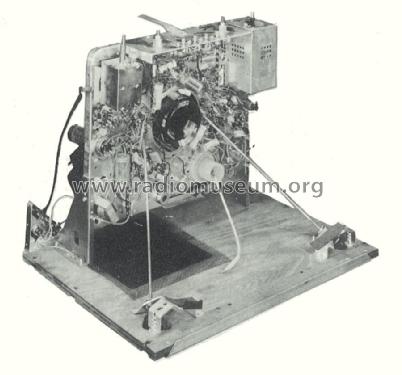

  • The Magnavox chassis CMUA501CC 117 Series is a b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. This chassis is equipped with a picture tube 21ATP4 or 24YP4.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
